Home Screen Navigation
- The control wheel on the front panel is your main navigation tool within the user interface.

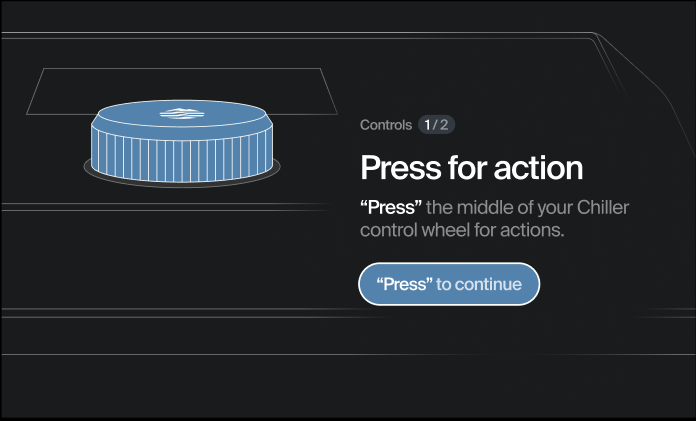

- Press once to select an option.

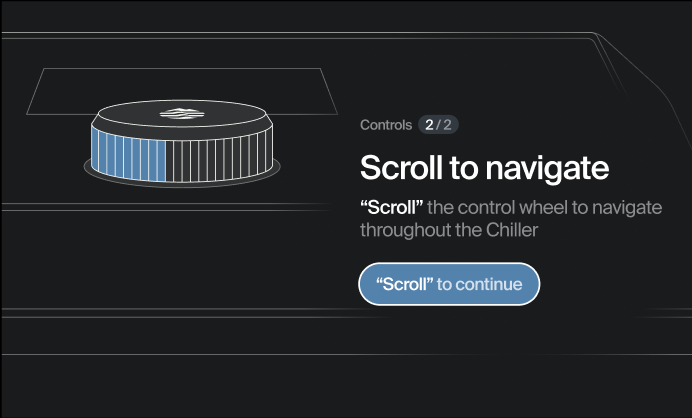

- Rotate left or right to navigate through options and settings.
- Press and hold for 3 seconds to access more complex functions and the main menu.
Temperature Adjustment:

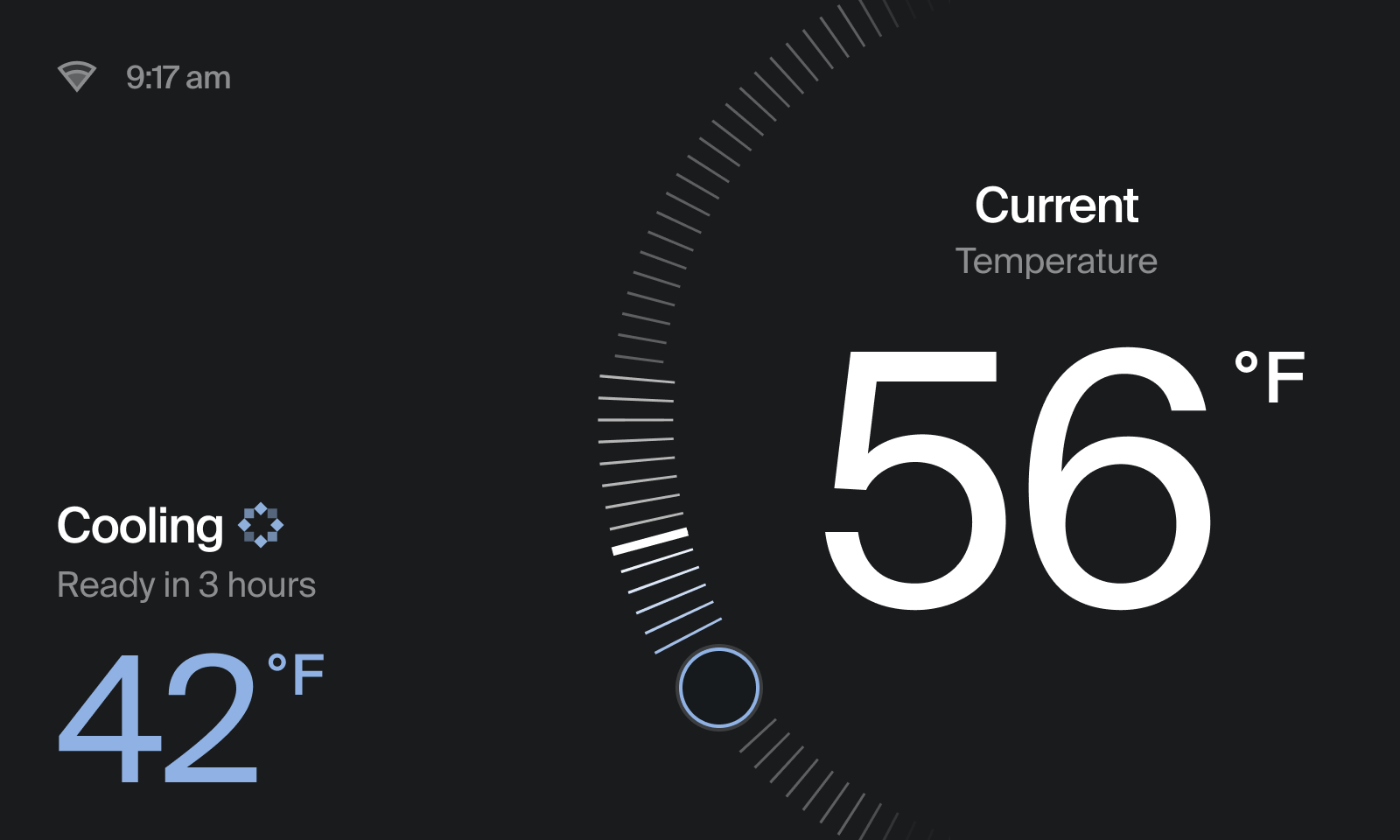

- Easily adjust your desired water temperature from the home screen with a turn of the wheel, with on-screen prompts for confirmation.
State Switching:
- A simple press on the control wheel switches between 'Cooling' and 'SmartSense' modes, with on-screen prompts for confirmation.
- Note that the Chiller has safety mechanisms to prevent rapid switching between modes to protect sensitive cooling components, ensuring they run for their minimum required time.
Menu Access:
- Press and hold the control wheel for 3 seconds to bring up the menu, where you can schedule sessions, review notifications, and update user settings.
- Note: Pressing and holding the control wheel for three seconds will always take you back to the top menu or the home screen, ensuring easy navigation.
- See the Menu section for more information.
Quick Start Cooling
- At any time, you can activate the Chiller by rotating the control wheel, which wakes up the display. Adjust your desired water temperature by turning the wheel and press it once to start cooling immediately. A pop-up confirmation will appear to ensure the action is intended. The Chiller will cool to the set temperature and maintain it for 3 hours, switching to Ready mode upon reaching it.
- If this session coincides with a scheduled session, the Chiller will prioritize your recent input but will resume scheduled activities once the instant session ends.
- See the Scheduling section for more information on managing and setting up your schedules.
