Setting Up Your Chiller

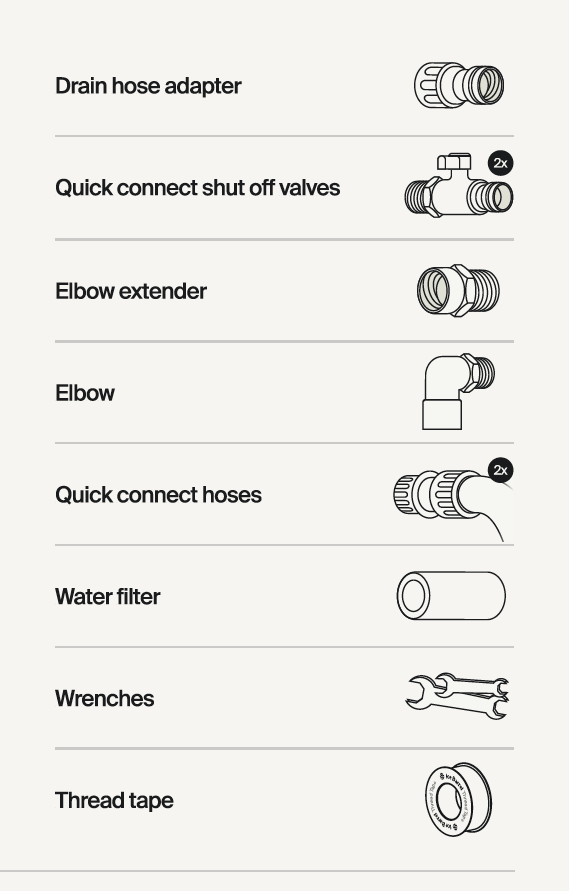

What Is In The Box:

• • Chiller

  • Welcome Guide

  • Safety Guide

  • 2 - 6 ft Quick Connect Hoses

  • 50 micron filter

  • Quick connect fittings

    • 1 Elbow

    • 1 Elbow extender

    • 2 Quick connect shut off valves

    • 1 Drain Hose Adapter

  • Thread tape

  • Assembly multi-wrenches

  • Water filter wrench

Unboxing and Accessory Setup:

• • Upon receiving the Chiller in a box, you will unbox it and ensures all components are present.
  • Inside the accessory box, you will find the owner's guide, which prompts you to download the Ice Barrel App.
  • The owner's guide provides initial setup instructions and directs you to use the app for further guidance.

App Installation and Setup:

• • Following the prompt in the owner's guide, you will download the Ice Barrel App from the app store.
  • Once you go through the onboarding process of the app setup, you will need to click on the Chiller feature and then select Connect Chiller.

Placing the Chiller:

• • When finding the perfect spot for the Chiller, ensure it's on level ground and within a 6-foot distance from the Ice Barrel to make the setup process easy. If the Chiller is positioned on uneven ground, you may receive a notification prompting you to adjust its location. This step is crucial for the proper functioning of the Chiller system.

Ice Barrel Preparation:

• • Drain the Ice Barrel.
  • For Ice Barrel 300 and 500: Locate the bulkhead on the side of the Ice Barrel, remove the top bulkhead plug, and the bottom water shut-off valve, ensuring that the bulkhead fittings stay tight.
  • For Ice Barrel 400: Install the Conversion Kit following the provided instructions before attaching the Chiller accessories.(Conversion kit sold separately)

Install Shut-Off Valves:

• • Please be cautious not to over-tighten any of the fittings, as excessive force may lead to damage. Note: All will need to have red tape applied to the threads before installing them.
  • Find the Ice Barrel shut-off valves, elbow and elbow extension provided with the Chiller.
  • Attach the elbow extension, then the elbow to the top bulkhead with the elbow facing downward, and then screw the shut-off valve into the elbow fitting.
  • Screw the second shut-off valve into the bottom bulkhead, ensuring tightness with provided tools.
  • Make sure that the shut off valves are closed and refill the Ice Barrel and check for leaks.

Removing Shipping Caps from Quick Connect Fittings:

• • Remove the Top Quick Connect Cap
    • Locate the quick connect fitting coming off the water filter on the back of the Chiller.
    • Firmly pull the cap straight out to remove it.
  • Remove the Bottom Quick Connect Cap
    • Locate the bottom quick connect fitting on the bottom right side of the back of the Chiller.
    • Firmly pull the cap straight out to remove it.

Connect Quick Connect Hoses Properly:

• • Locate the 6-foot quick connect hoses provided with the Chiller.
  • Connect the top side of the barrel fitting to the top connection on the Chiller (filter location).
  • Connect the bottom connection on the Ice Barrel to the bottom connection on the Chiller.

Open Water Valves:

• • Open the top and bottom water valves on your Ice Barrel to allow water to flow into the Chiller system.

Power On Chiller:

• • Connect the Chiller to a power source and ensure it is properly plugged in.
    • The Chiller includes a GFCI module on the power cord for added safety. While the module is designed to withstand exposure to water, it should not be submerged. Place it in a location where it can remain above water, ensuring the Chiller operates safely and efficiently outdoors.
  • Locate the soft power button on the back of the Chiller.
  • Press and hold the button for three seconds.
  • The power button will light up, indicating the Chiller is now powered on.

Chiller Setup and Activation:

• • Step 1: Follow On-Screen Prompts

    • Power on the Chiller and follow the on-screen prompts on the Chiller's UI.
    • The UI will guide you through the basic functions and how to navigate using the control wheel.

  • Step 2: Assembly Tutorial (if needed)

    • If you have not already connected the quick-connect fittings and hoses, the UI will offer an assembly tutorial.

  • Step 3: Download the App

    • You will be prompted to download the Ice Barrel App if you haven't done so already.

  • Step 4: Connect to Wi-Fi

    • The Chiller UI will guide you through the process of connecting to Wi-Fi.
    • Use your phone's camera app to scan the QR code displayed on the Chiller's screen.
      • If the camera app does not work, you can manually enter the SSID code into the app.
    • Scanning the QR code will automatically take you to the Chiller setup process within the app.
      • If not, open the app, choose the Chiller feature, and click "Connect." Follow the prompts to reach the page where you enter the SSID.

  • Step 5: Provisioning Process

    • Choose your Wi-Fi network and enter your Wi-Fi password.
    • Follow the prompts to join the Chiller’s Wi-Fi network when prompted.
    • Once the provisioning process is completed, the Chiller will go to the Home UI screen, and the app will display a completed icon.

  • Step 6: Final Setup Steps

    • The app will prompt you to provide information about the specific Ice Barrel connected to the Chiller.
    • Indicate whether the Chiller is placed indoors or outdoors.
    • Choose a name for your Chiller for easy identification within the app, especially if you have multiple Chillers.
    • The Chiller may perform an automatic software update, which can take up to five minutes.

  • Step 7: Set Up Your Schedule

    • Once the software update is complete, the Chiller will be ready for scheduling.
    • Set up a basic schedule from the Chiller’s UI.
    • For advanced scheduling options, use the app to customize and control your Chiller's schedule.(Coming Soon)
